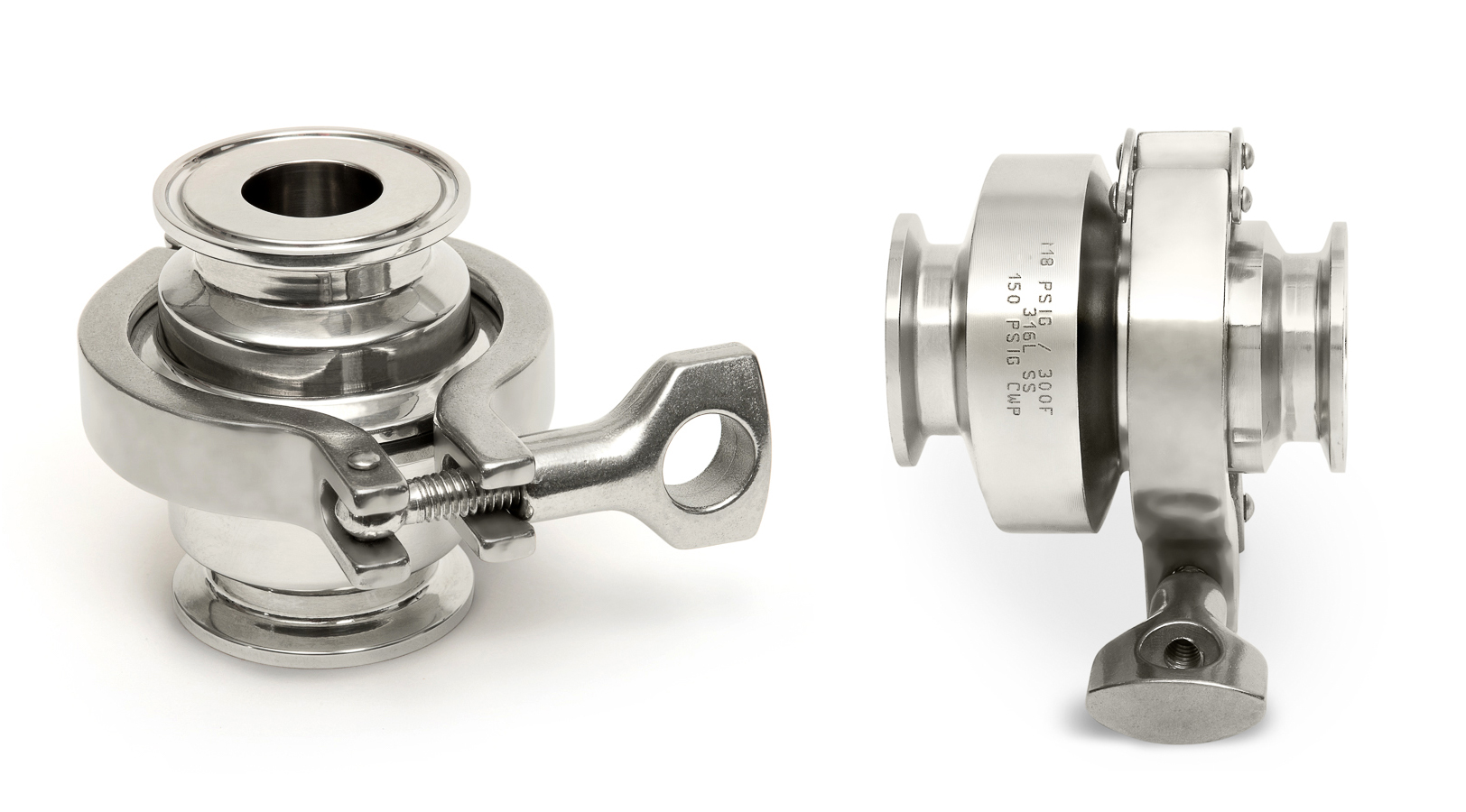

DSV® Sanitary Check Valves
Sanitary Check Valves
The DSV® is an in-line spring-assisted check valve designed to prevent flow reversal in industries with strict cleanliness codes. To accommodate various piping arrangements, the DSV® is available as a "Vertical" or "Horizontal" valve. The Horizontal valve is for Horizontal lines requiring a self-draining valve. The "Vertical" design is for "Vertical" installations and "Horizontal" lines when a self-draining valve is not required. The DSV®, with a 316L stainless steel body and seat, is fastened with a quick release clamp and elastomeric body seal to permit fast and easy access to the internals. The disc and seat are lapped to provide excellent shutoff.
The DFT® sanitary check valves meet 3-A Standard 58-02 and certified Clean in Place. Applications include pharmaceutical, chemical, beverage/beer, food, dairy industries and others.
Standard Features:
The DFT® sanitary check valves meet 3-A Standard 58-02 and certified Clean in Place. Applications include pharmaceutical, chemical, beverage/beer, food, dairy industries and others.
Standard Features:
- Meets 3A Sanitary Standard 58-02
- Sizes 1/2" thru 4"
- 150 CWP, 108 ANSI Pressure Class
- 316L Body and Seat (A351 CF3M)
- 316 Disc, Spring and Guide Assembly
- 32 Ra Internal Surface Finish (#4 Ground Finish)
- Options:
- 15 Ra Internal Finish
- CIP (Clean in Place)
- Clamped Ends
- Seat Leakage per MSS SP-61
- Edge-Guided Disc: 1/2" thru 2"
- Edge/Center-Guided disc: 2 1/2", 3", 4"
- Lapped "metal" Seat and Disc
- Springs:
- Low Cracking Pressures
- 0.16 psig to 0.66 psig
- Conical Design
- Electropolished Finish
- Standard Gasket Body Seal:
- EPDM (300ºF Max Temperature)
- Spring-Assisted Silent Closing
- Horizontal or Vertical Installation
Prod. # |
Inventory |
Series |
Size |
Style |
Body |
Body Seal |
ENDS |
Rfi_link |
Inventory |
List Price |
|---|---|---|---|---|---|---|---|---|---|---|
| 215CAA4A3 215CAA4A3/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CBA4A3 215CBA4A3/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DAA4A3 215DAA4A3/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DBA4A3 215DBA4A3/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EAA4A3 215EAA4A3/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EBA4A3 215EBA4A3/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg | Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Horizontal | Body N/A Stainless Steel | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | ||
| 215GAA4A3 215GAA4A3/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GBA4A3 215GBA4A3/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HAA4A3 215HAA4A3/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HBA4A3 215HBA4A3/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JAA4A3 215JAA4A3/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JBA4A3 215JBA4A3/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KAA4A3 215KAA4A3/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KBA4A3 215KBA4A3/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LAA4A3 215LAA4A3/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LBA4A3 215LBA4A3/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CAA4A3EP 215CAA4A3EP/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CAA4A3F 215CAA4A3F/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CAA4A3TE 215CAA4A3TE/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CAA4A3TS 215CAA4A3TS/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DAA4A3EP 215DAA4A3EP/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DAA4A3F 215DAA4A3F/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DAA4A3TE 215DAA4A3TE/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DAA4A3TS 215DAA4A3TS/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EAA4A3EP 215EAA4A3EP/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EAA4A3F 215EAA4A3F/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EAA4A3TE 215EAA4A3TE/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EAA4A3TS 215EAA4A3TS/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GAA4A3EP 215GAA4A3EP/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GAA4A3F 215GAA4A3F/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GAA4A3TE 215GAA4A3TE/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GAA4A3TS 215GAA4A3TS/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HAA4A3EP 215HAA4A3EP/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HAA4A3F 215HAA4A3F/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HAA4A3TE 215HAA4A3TE/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HAA4A3TS 215HAA4A3TS/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JAA4A3EP 215JAA4A3EP/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JAA4A3F 215JAA4A3F/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JAA4A3TE 215JAA4A3TE/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JAA4A3TS 215JAA4A3TS/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KAA4A3EP 215KAA4A3EP/ImgCustom/30/placeholder_notavailable.gif |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KAA4A3F 215KAA4A3F/ImgCustom/30/placeholder_notavailable.gif |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KAA4A3TE 215KAA4A3TE/ImgCustom/30/placeholder_notavailable.gif |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KAA4A3TS 215KAA4A3TS/ImgCustom/30/placeholder_notavailable.gif |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CBA4A3EP 215CBA4A3EP/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CBA4A3F 215CBA4A3F/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CBA4A3TE 215CBA4A3TE/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215CBA4A3TS 215CBA4A3TS/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.5 in15 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DBA4A3EP 215DBA4A3EP/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DBA4A3F 215DBA4A3F/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DBA4A3TE 215DBA4A3TE/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215DBA4A3TS 215DBA4A3TS/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 0.75 in20 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EBA4A3EP 215EBA4A3EP/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EBA4A3F 215EBA4A3F/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EBA4A3TE 215EBA4A3TE/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215EBA4A3TS 215EBA4A3TS/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1 in25 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GBA4A3EP 215GBA4A3EP/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GBA4A3F 215GBA4A3F/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GBA4A3TE 215GBA4A3TE/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215GBA4A3TS 215GBA4A3TS/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 1.5 in40 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HBA4A3EP 215HBA4A3EP/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HBA4A3F 215HBA4A3F/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HBA4A3TE 215HBA4A3TE/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215HBA4A3TS 215HBA4A3TS/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2 in50 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JBA4A3EP 215JBA4A3EP/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JBA4A3F 215JBA4A3F/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JBA4A3TE 215JBA4A3TE/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215JBA4A3TS 215JBA4A3TS/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 2.5 in65 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KBA4A3EP 215KBA4A3EP/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KBA4A3F 215KBA4A3F/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KBA4A3TE 215KBA4A3TE/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215KBA4A3TS 215KBA4A3TS/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 3 in80 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LAA4A3EP 215LAA4A3EP/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LAA4A3F 215LAA4A3F/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LAA4A3TE 215LAA4A3TE/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LAA4A3TS 215LAA4A3TS/Asset/DSV_Sanitary_Vertical_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Vertical | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LBA4A3EP 215LBA4A3EP/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A EPDM | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LBA4A3F 215LBA4A3F/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Viton® (-40 to 400ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LBA4A3TE 215LBA4A3TE/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Flex® (-20 to 300ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} | |
| 215LBA4A3TS 215LBA4A3TS/Asset/DSV_Sanitary_Horizontal_Check_Valve_CN.jpg |
Inventory
N/A {0} |
Series N/A DSV® | Size N/A 4 in100 mm | Style N/A Horizontal | Body N/A 316L SS | Body Seal N/A Tuf-Steel® (-325 to 550ºF) | ENDS N/A Clamped | Inventory N/A =CASE WHEN {Inventory}=0 THEN {Rfi_link} ELSE CONVERT(VARCHAR(255),{Inventory}) END= | {QUOTE} |
